Loadcells
RULP (ROUTE Universal Low ProfileLoadcell)
- Capacities : 1000 kg to 300 000 kg
- Applications including: Cranes, platform scales, hoppers, silos, tanks and batching systems
- High grade tool steel and painted for protection
- Hermetically sealed to meet IP 68 standards
- Compact design
- Inherently more resistant to bending, off-centre loading and side load effects
- Robust and effective solution for industrial weighing systems
- Click here for the full performance and dimensional specification sheet
ZEMIC loadcell - NRCS approved weighbridge loadcell
- Capacities : 10t to 50t
- Weighbridge loadcell.
- NRCS approved
- Accuracy class: OIML R60 C3
- Click here for the full performance and dimensional specification sheet
RSS (ROUTE S-Type Loadcell)
- Capacities : 5kg to 250kg
- Applications including: Platform scales, Hoppers, tanks and batching systems
- High grade tool steel
- Sealed to meet IP 67 standard
- Click here for the full performance and dimensional specification sheet
RMSB (ROUTE mini-shear beam)
- Capacities : 50kg to 10t
- Capacities : 100lb to 20klb
- Applications including: Belt weighers, weigh bins, platform scales
- Sealed to meet IP 68 Standards
- High grade tool steel
- Click here for the full performance and dimensional specification sheet
RBB (ROUTE bending beam)
- Capacities : 20kg to 200kg
- High accuracy
- Small size
- Low capacity
- Applications:belt weighers, preweighers, small hoppers, tanks, loss in weight feeders and highly suitable for the food industry.
- Click here for the full performance and dimensional specification sheet

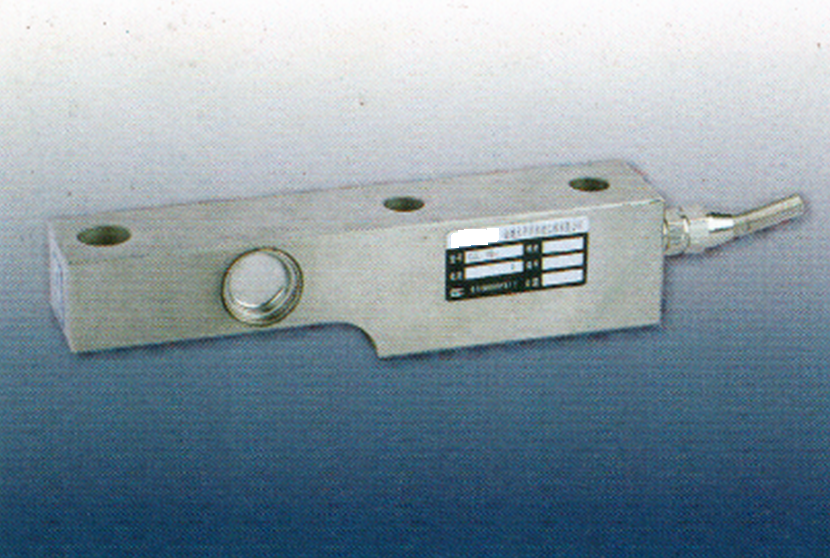

RCB (ROUTE cantilever beam)
- 1T to 10T
- Well suited to hoppers and bins of medium capacity to be weighed accurately
- Click here for the full performance and dimensional specification sheet
RPAC
- Capacities : 3kg to 90kg
- Single point Loadcell for platforms up to 400 x 400mm
- Applications: Process Weighing, Price computing scales, Check
weighers, Bench scales, Counting scales and the food industry - Click here for the full performance and dimensional specification sheet
ROUTE Double Shear Beam Loadcell
- Capacities : 10t to 50t
- This Loadcell offers a simplified solution to a wide range of weighing and force
measurement applications where side force resistance of low profile is important - Hermetically sealed
- Eliminates the need to
troublesome stray rods and hold down bolts - Click here for the full performance and dimensional specification sheet
